25mm Lean To Roof Kits

£0.00 £0.00

25mm Roof Kits from the Glazing Shop are excellent value and easy to install. This strong heavy duty system is designed to self support so no wooden rafters are required to carry the glazing bars.

The Glazing Shop gives you everything you need to build a 25mm Lean to roof. 25mm Roof Kits are the most popular choice for robust and value for money conservatory roofs. 25mm Polycarbonate is the ideal choice for conservatories because of its excellent insulation properties.

Buying a lean to roof kit from the Glazing Shop gives you peace of mind that all of our components are properly specified and professionally manufactured to meet the challenges of the Great British weather.

The kits are available in brown or white and the polycarbonate in a choice of three colours - clear, opal or bronze.

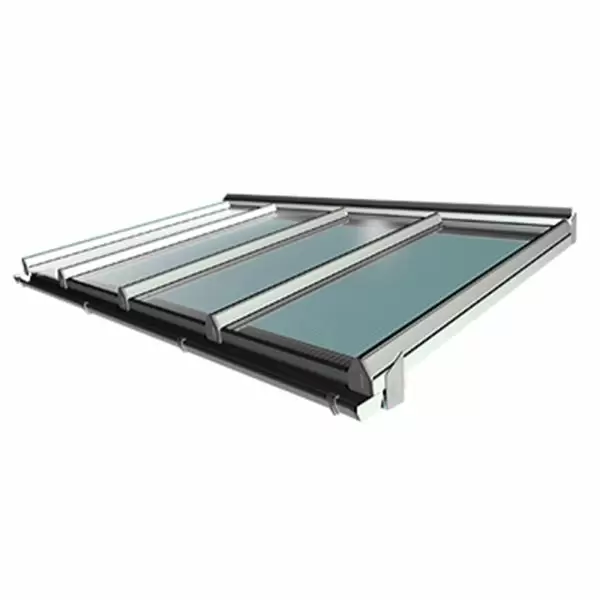

All 25mm roof kits include a Wall Plate (A) and an Eaves Beam .(B) PVC capped self supporting glazing bars (C) including two dedicated end bars (D). Cut to size polycarbonate sheets (E) and  and PVC sheet closures for the ends of the sheets (F). Rainwater goods are not included.

The projection is the roof bar length not the horizontal floor measurement.

25mm Lean To Roof Kits

For a price or to order - first choose your colours, then your roof size from the following standard lengths and projections:

These components are calculated for use on a conservatory. If using for an open structure like a canopy, an additional eaves support and potentially more glazing bars will be needed - call us for details. If you want a size that is not listed please call us on 01536 446395 as we can make one to suit.

Availability: In stock
SKU
25MMLEAN



Details

What exactly will my roof kit contain and will it be properly specified structurally?

All Glazing Shop roof kits include a Wall Plate, an Eaves Beam, two end glazing bars and the number of Intermediate Glazing Bars required structurally to suit the length and projection of your roof. As there are no rafters in place the roof must contain the right glazing bar centres and polycarbonate widths to be able to support itself properly. With this in mind, also included in your roof kit are 25mm polycarbonate sheets cut to the correct widths and lengths for the roof kit size of your choice. Our polycarbonate sheets come taped for you, ready for you to attach the sheet end closures which are also supplied as part of your kit.

If you need any more information please give us a call on 01536 446395 and we will be happy to help.



What do you get in your 25mm Lean To Roof Kit

         Click on the size you require from the options below for a full list of component parts for that kit


25mm Lean To Roof kit - components list

2m length x 2.5m projection

1 x 3m Wall plate

1 x 3m System eaves beam

2 x 2.5m End Glazing bars

1 x 2.5m Main bar

2 x 25mm polycarbonate sheets
950m wide x 2525mm length

1 x 2.5m Sheet End Closure

Complete with flashing and end caps.

Complete with gaskets and PVC Cladding for a neat finish.

Complete with gaskets and PVC Cladding for a watertight and attractive finish. End bars contain adjustable adapters to neatly finish off the left and right ends of your roof. Bar end caps are included.

Complete with gaskets and PVC Cladding for a watertight and attractive finish. Bar end caps are included.

Cut to size for your convenience. Supplied taped with sealing tape at the top and perforated anti-dust tape at the bottom.


Professional closures with a co-extruded  gasket and drainage holes to protect the sheets from water ingress and neatly finish off the front of your roof. These are easily cut to size on site.


Please note: These components are calculated for use on a conservatory not an open structure. If you need a roof for a canopy an additional eaves support and potentially more glazing bars will be needed - call us on 01536 446395 for details.
