System Eaves Beams - all colours

£0.00 £0.00

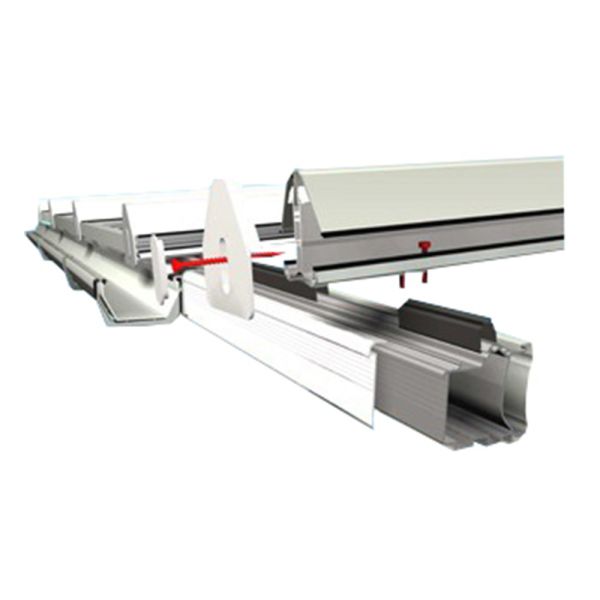

Eaves beam specifically designed for use with our Self Support System. Variable roof pitch adjustment from 5 to 25 degrees. The eaves beam is thermally clad in uPVC inside and out for an attractive finish. Available in a range of lengths and a wide range of colours. The self support system eaves beam comes with two end caps and an eaves filler which can be cut to size for your panel widths. M6 x 35mm fixings illustrated in fitting instructions are not included. There are purpose made gutter brackets for the white and brown beams which clip neatly on to this beam without the need for screws, please find how to attach.

*This eaves beam is designed to sit on support i.e on windows in a conservatory. If you require an eaves beam without continuous support i.e. in a canopy, please use the aluminium eaves beam.

White, Brown, Anthracite Grey, Black, Rosewood & Light Oak: 3m, 4m & 6m

For dimensions please click here and for assembly instructions click here.

For prices or to order please chose from the sizes below:


Availability: In stock

This Eaves Beam has been specifically designed as part of our heavy duty Self Support Roof System. It is designed to sit on support from below e.g on windows in a conservatory. If using on a canopy additional eaves support will be required or use the aluminium eaves beam instead.

The self support system has all the parts needed to install a lean to roof. It comes in White, Brown, Anthracite Grey, black Rosewood or Light Oak finishes. Designed for ease of installation. This system is suitable for 16mm, 25mm, 32mm and 35mm Polycarbonate Sheets or 24mm Glass units. This Lean To Roof System is suitable for a wide variety of projects. It is equally suited to replacement roofing or new projects. Particularly popular for conservatories, canopies and carports. This system is available in a wide range of sizes.

The self support roof system includes Glazing Bars bars supported by a Wall plate & Eaves beam. There is also a wide range of trims and accessories to complete your project.

*Please note our self-supported roofing systems are not cantilever in design. Therefore the bars still require a frontal framework for support.
