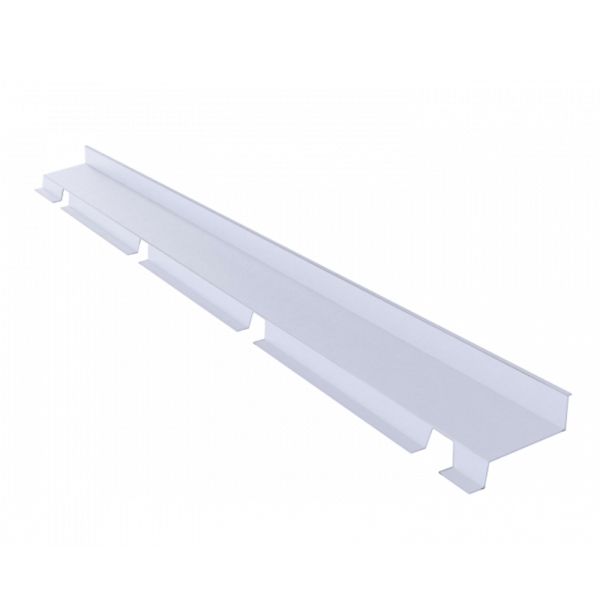

EZ Glaze Wall Flashing
The EZ Glaze Wall flashing is a durable lightweight aluminium trim purpose made to be used with the EZ Glaze roof system.
Taking away the difficult work of flashing the roof in lead this handy profile has a flat wall upstand at its top which can be further flashed more easily if you wish.
The base is shaped to follow the corrugations of the panels for a neat and attractive finish which is very easy to fit and offers improved weatherproofing.
Aluminium profile is 3mm thick
Length is supplied at 2.2m in total with a 2m coverage of three EZ Glaze sheets
Please choose the quantity of flasing lengths below:
How to install the EZ Glaze Wall Flashing
The wall flashing is specifically designed for use with the EZ Glaze roof system. Shaped to fit easily over the 600mm rafter spacings and the corrugated edges of the sheets.

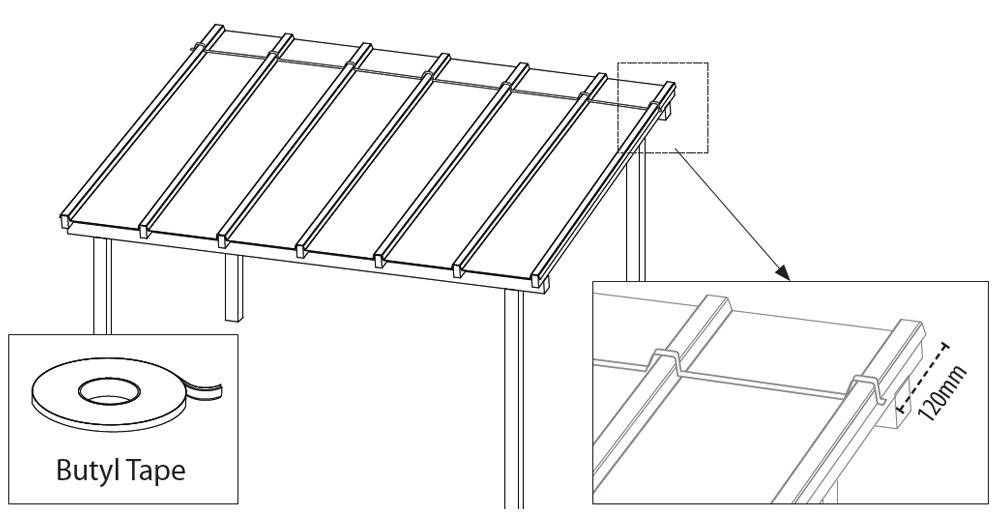

1. A butyl tape can be applied along the top of the panels if desired before the wall flashing is fitted for improved weathering. The tape should be applied 200mm from, and parallel to, the wall.

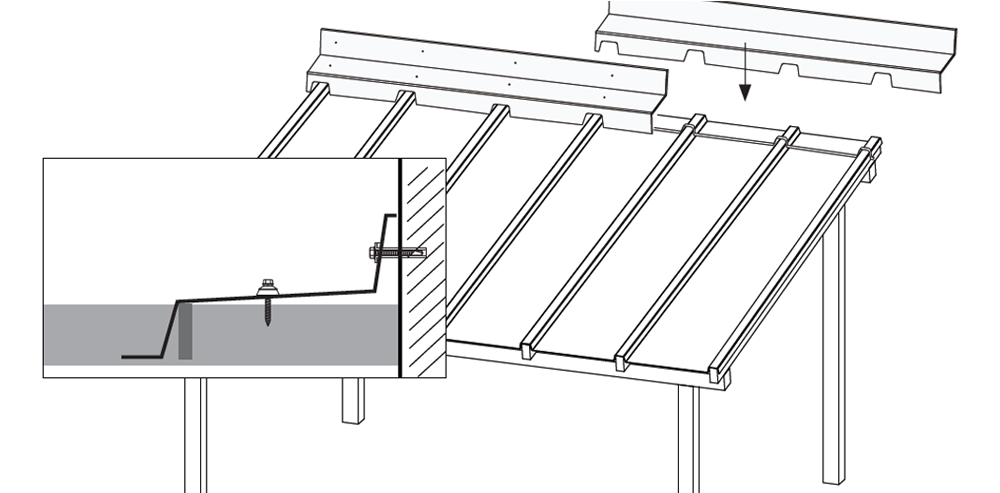

2. The aluminium wall flashing should be fitted over the matching corrugations on your roof, slotting easily into place and overlapping by 200mm. The flat upstand leans against your wall. Use suitable masonry screws at 600mm centres to fix though to it in line with the rafters. Also use the EZ Glaze fixings to fix down through the flashing into each rafter at the corrugation.

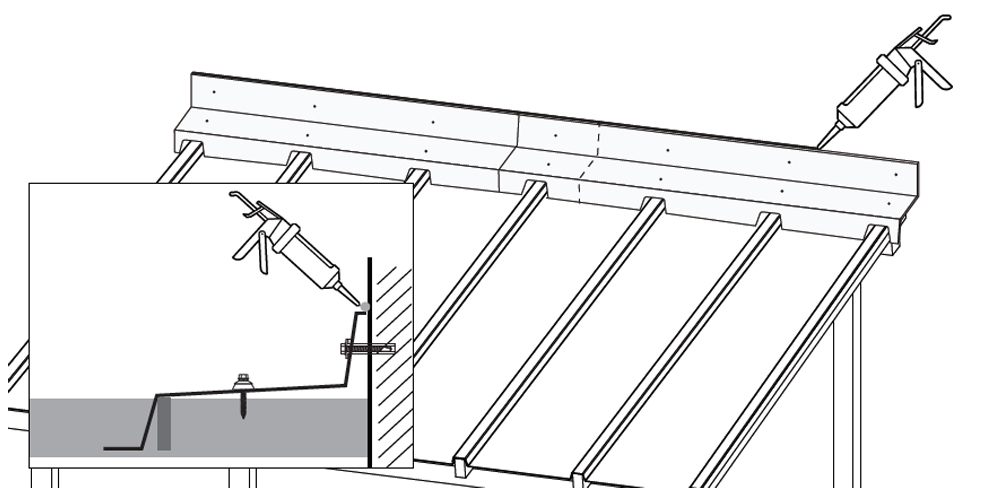

3. You can add a bead of silicon along the top edge of the flashing. Alternatively the flat edge can be flashed over with lead or flash band if desired.
