End Cap - Aluminium Capped Hip Bar
To view prices please select your required options below.
Product details

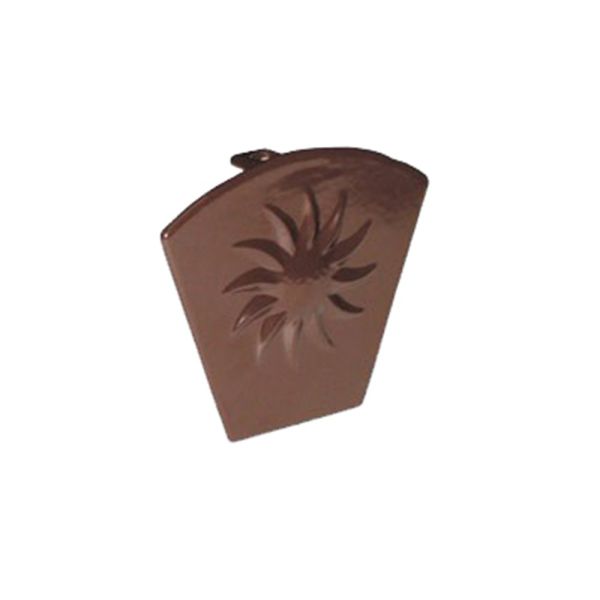

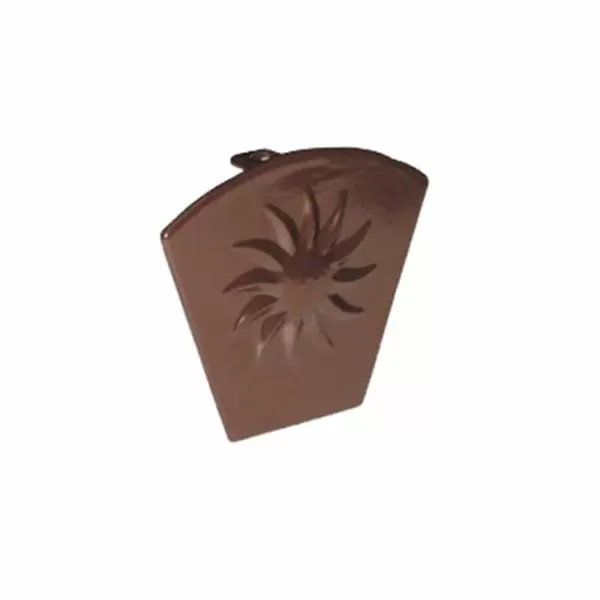

Powder coated cast aluminium end cap for use with the Sunwood screw down aluminium capped hip bar. Overall height of 89mm and width of 102mm with a 4mm thickness
Benefits
High quality cast aluminium is strong and durable. Powder coated to match the glazing bars for a maintenance free finish. Contains a built in glass stop.
Mill end cap available should you wish to powder coat it to another RAL colour.
Fitting
There is a pre-cast tab on the back of the end cap which fits neatly into the central channel on the bar top cap. This has a pre-drilled hole to accommodate a countersunk 3.9mm x 25mm stainless steel screw (not included). Screw through and then clip the concealment capping of the bar into place to cover.
For more information or advice please give us a call on 01536 446395.
The Sunwood Glazing System
The Glazing Shop offers a selection of glazing bars which are designed to be supported on wooden rafters. Within our range we have PVCu and aluminium capped bars available.
Our range of Aluminium Capped rafter bars offers three types of bars inclusing a hip bar which are robust and maintenance free. These glazing bars accommodate all popular thicknesses of Multiwall Polycarbonate Sheeting and they are also suitable for glass. Highly adaptable, aluminium capped bars are ideal where extreme variations in temperature are experienced or in areas which are exposed to higher winds e.g coastal areas.
Our two types of PVCu Capped rafter bars are strong, lightweight and easy to fit. One bar accommodates 10mm, 16mm and 25mm Multiwall Polycarbonate Sheeting and the other 25mm, 32mm and 35mm sheets. Highly flexible they are ideal for many applications.
The Sunwood professional range for timber conservatories is designed around a wider maintenance free powder-coated aluminium ridge able to accommodate glass and polycarbonate.
For further information on the Sunwood Timber Glazing
. Sunwood Timber Glazing Brochure
. Sunwood Bar Dimensions
. Sunwood Specification Sheet
. Sunwood Fitting Instructions
