Rafter Main Bar - Aluminium Capped

£0.00 £0.00

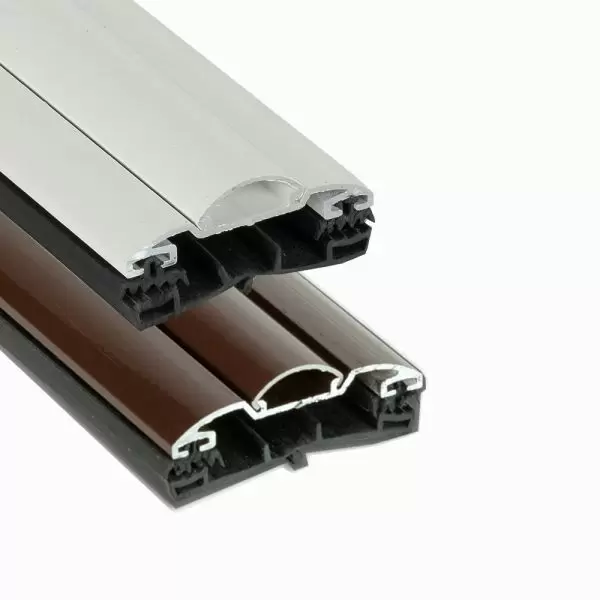

Powder coated aluminium Sunwood timber glazing bar for fixing to wooden rafters. Available in widths of 50mm & 60mm this screw down glazing bar has a neat clip in screw concealment cap for a sleek finish. The aluminium rafter glazing bar is suitable for use with glass and all thicknesses of polycarbonate sheets. All gaskets and screws are included in these aluminium rafter bars.

To create an end bar simply add an Aluminium F section.

Bar end caps include a glass stop and are available seperately.

October savings!! - Buy your polycarbonate from us and enjoy a 10% discount off these aluminium rafter glazing bars throughout the month of October - apply the code BAR10 to your basket.

These screw down glazing bars are also available in Anthracite grey and mill finish.

To get prices please select the width, colour and length of bar from the options below:



Availability: In stock
SKU
RMBAC



Uses

The Sunwood Aluminium Capped Glazing bars are perfectly suited for use in all glass and polycarbonate roofs. The aluminium rafter glazing bars are available in widths of 50mm or 60mm dependent upon the width of your rafters. Visually these screw down glazing bars have a sleek low profile making it ideal for modern or traditional roof finishes. It has a neat, rounded screw concealment cap to hide your fixings making it a perfect choice for high end, high quality roofs. Perfect for timber conservatory roofs, orangeries and atriums. This screw down rafter glazing bar is equally suited to new constructions or if you would like to refurbish or waterproof an existing wooden conservatory roof.

The screw down fixing makes these bars particularly suited to costal or other windy locations where a strong fix is needed.

Options

These aluminium rafter glazing bars are available in two widths of 50mm and 60mm. Both are suitable for all glazing thicknesses. Available in white and brown as standard for use with the other elements of a Sunwood roof. They are also available in anthracite grey in 50mm & 60mm widths, or mill finish (so they can be powder coated to other RAL shades) for use in lean to roofs.

Fitting

Extremely easy to fit the screw down bars come complete with all of the gaskets you will require and the screws. First sit the base gasket straight onto your timber rafter and your chosen glazing sits on top of this on either side. Screw down through the aluminium top cap between the glazing sheets using the central groove as a guide.  The top cap itself has two slide in gaskets that sit atop the glazing ensuring a watertight seal. The curved screw concealment ‘c’ profile is then ‘clipped in’ to complete the neat and smooth look.

Sunwood Range

There is a full range of complimentary products for these Aluminium rafter glazing bars available for anyone building a timber conservatory roof. The Sunwood System offers a selection of timber ridges, PVCu snap down or aluminium screw down bars, hip bars, and a range of crestings and finials. Supported by a full range of trims and accessories, the ‘Sunwood’ system provides a professional finish to your roof every time.

Whether you are looking to glaze your roof in glass or polycarbonate glazing, the Sunwood system can meet your requirements.

If you need any more information in designing your roof, please call us on 01536 446395 and we will be happy to help you.
